Description:

This one bedroom house is located near the rim of a steeply sloping Auckland volcanic cone. Likely considered as too hard to build on by most, we saw an opportunity for something great for the clients, my parents, who were looking to downsize when they purchased the empty section.

The initial brief for the home contained more ’wants’ than the modest target construction budget allowed, so we challenged any preconceived ideas, in order to design a home specifically for their needs, likes, and idiosyncrasies of living. Every decision with regard to design and detail was scrutinised, costed, and re-evaluated, before committing to.

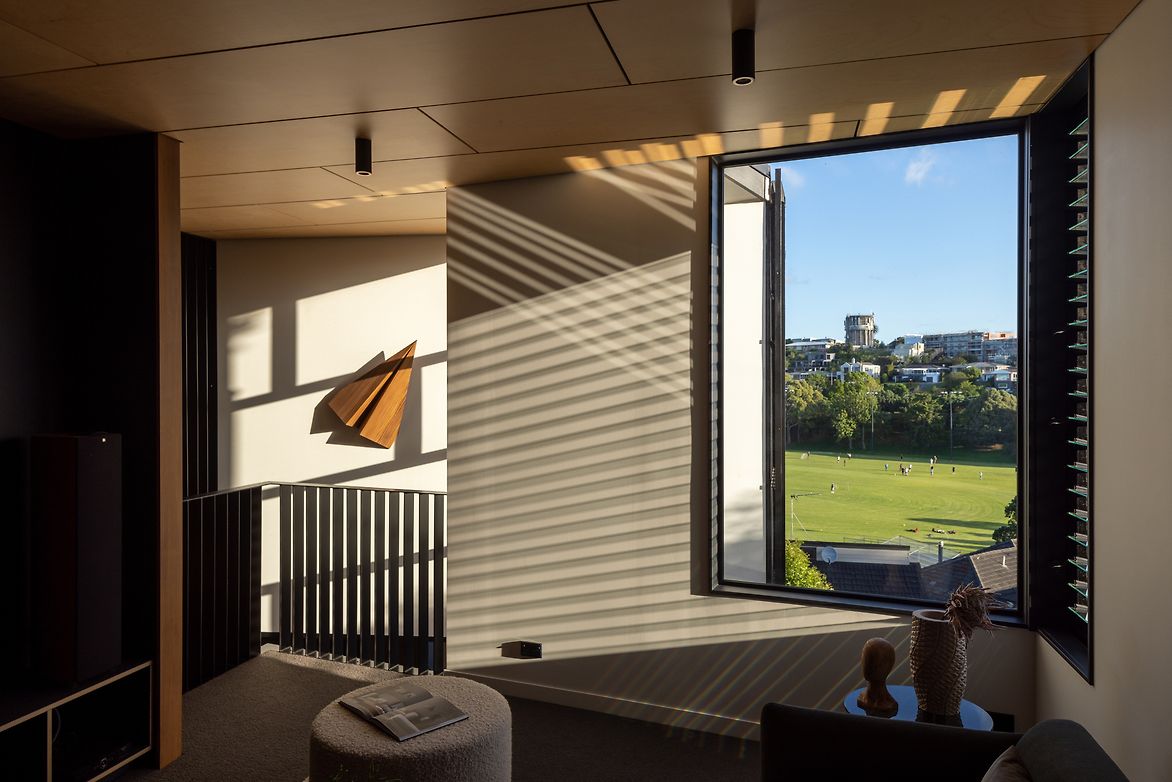

An extensive panoramic horizontal vista from the living space takes in the far side of the crater cone, as well as ‘green sea’ views of the park below. The orientation of the home, and established surrounding planting provide shelter from strong North-East and North-West onshore winds from the Gulf.

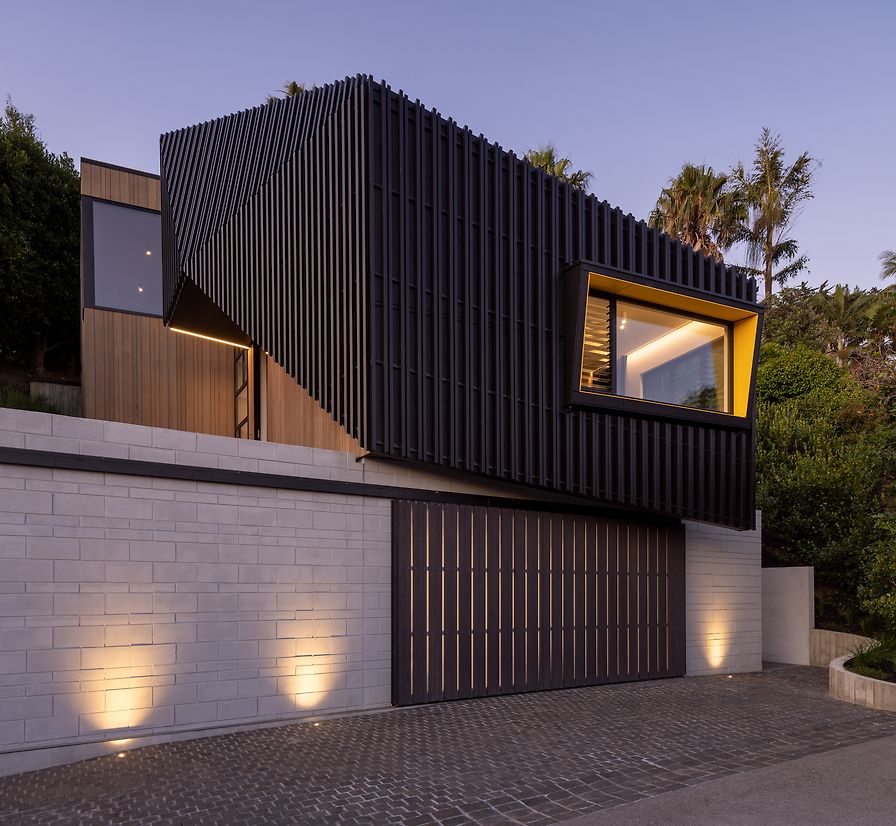

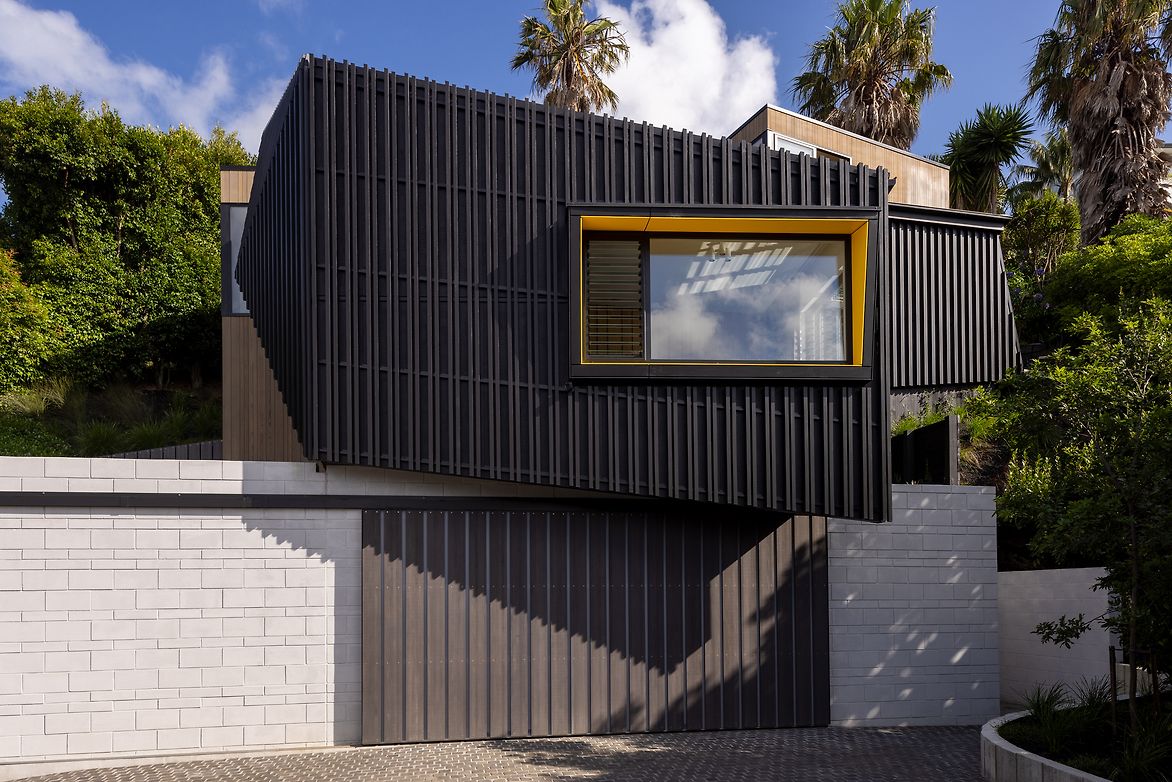

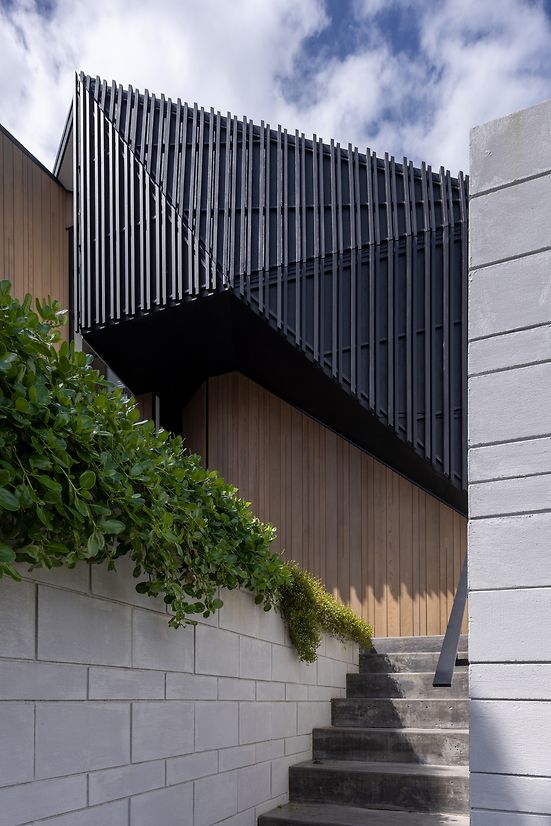

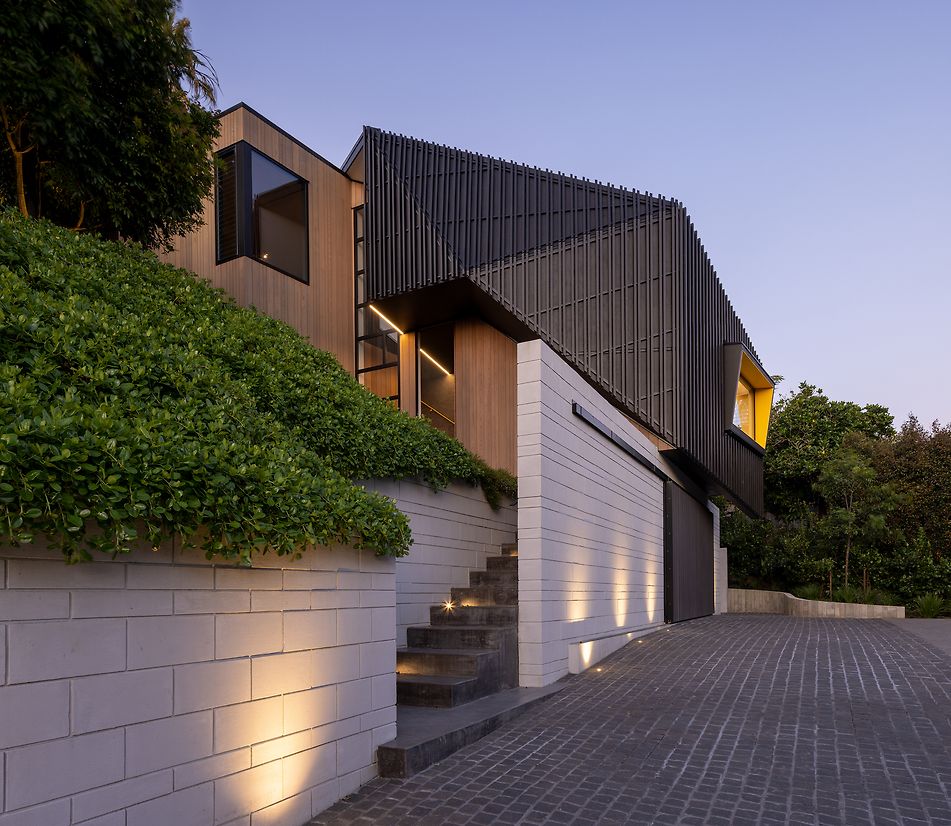

The home takes its form from an element constituting both roof and wall planes, which folds down the slope, linking each level. A number of years ago I’d seen a Jeff Thomson sculpture of a roll of corrugated iron twisting down a hillside, and how the ad-hoc form created interesting spaces. I worked with this cue, and designed a textural black folding form which contains and encloses spaces both internally and externally. Timber clad volumes anchor the folding form, and contain more intimate and inwardly focussed areas.

We set out to design; manage; and construct the home ourselves. Design and finish quality were paramount, and the construction budget was relatively immoveable, so we compromised on the only aspect we could - time.
My parents and family worked tirelessly Fridays and Weekends, calling on friends when suitable, and engaging builders and subcontractors where work was outside of our abilities, over a period of nine years.
The house presents a continuous series of interesting moments within, where ideas have been implemented through sheer determination, passion, patience, and hard work by all involved.

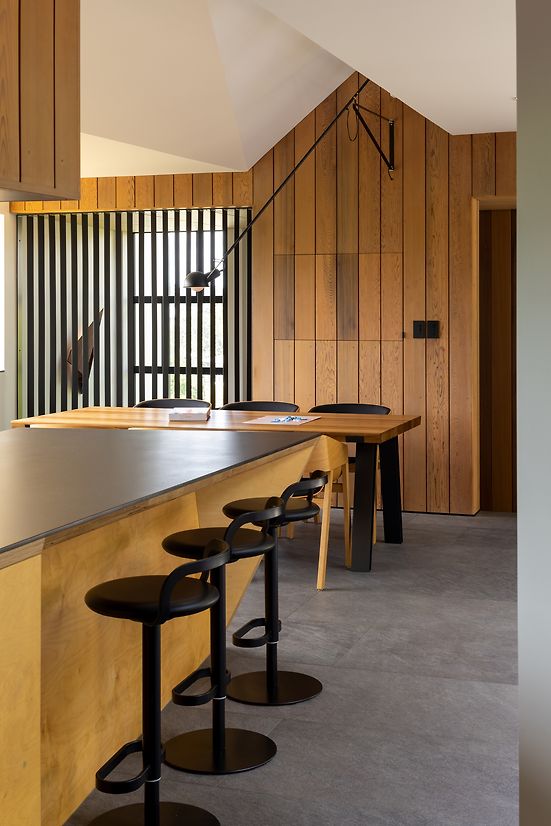

Finishing materials were selected based on hand workability, adaptability, budget, handling ability, and material tactility.
We approached the process and method of construction as: if we could build something ourselves, we would, hand fabricating parts of the building fabric on site in smaller manageable parts (such as the cladding screens, inverted ceiling trusses, etc) to eliminate any machine lifting.
We also custom constructed many building components from scratch on-site ourselves (eg doors, stairs, etc) to reduce the overall construction cost of usually off-site fabricated elements.

We made a number of cost effective, but labour intensive modifications to relatively standard building materials, lifting the level of interest and innovation of finishes, such as routing patterned grooves in timber linings, and notching holes in the subfloor cladding for subfloor ventilation. The saying “good things take time” doesn’t come close to describing this completely immersive personal project; the time invested and lessons learned; or the family bond experienced in the process, in the creation of this once in a lifetime home.
